By what does the color separator sort?

Color separator is a kind of equipment which can automatically separate different color particles in granular materials according to the difference of optical properties of materials by using photoelectric detection technology. A very official explanation, I believe that most people do not understand, in fact, in another way, maybe you can understand; The color picker is like a person with a camera inside that acts like a human eye to observe the product. If it’s broken, there’s the human equivalent of a spray valve. When the camera catches a bad product, the spray valve blows it out. This is how the color picker works.

1679885154585

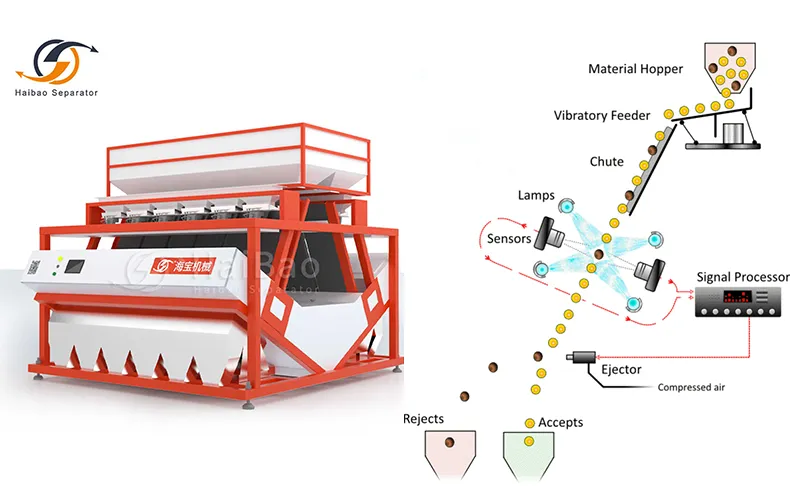

1. The material enters the machine from the top hopper, and the selected material falls down the feeding trough through the vibration of the feeding device (vibrator). 2. The material passes through the vibrator at the upper end of the chute, and the material slides along the chute at an accelerated speed into the sorting box. 3. After entering the sorting box, pass through the image processing sensor CCD and background equipment. Under the action of the light source, the CCD receives the synthetic optical signal from the selected material, so that the system generates the output signal, which is amplified and transmitted to the FPGA +ARM calculation and processing system, and then the control system issues the command to drive the injection solenoid valve to blow the particles of different colors into and out of the waste chamber of the hopper. 4. The selected material continues to fall into the finished product chamber of the hopper, so that the selected material to achieve the purpose of selection.

色选机
